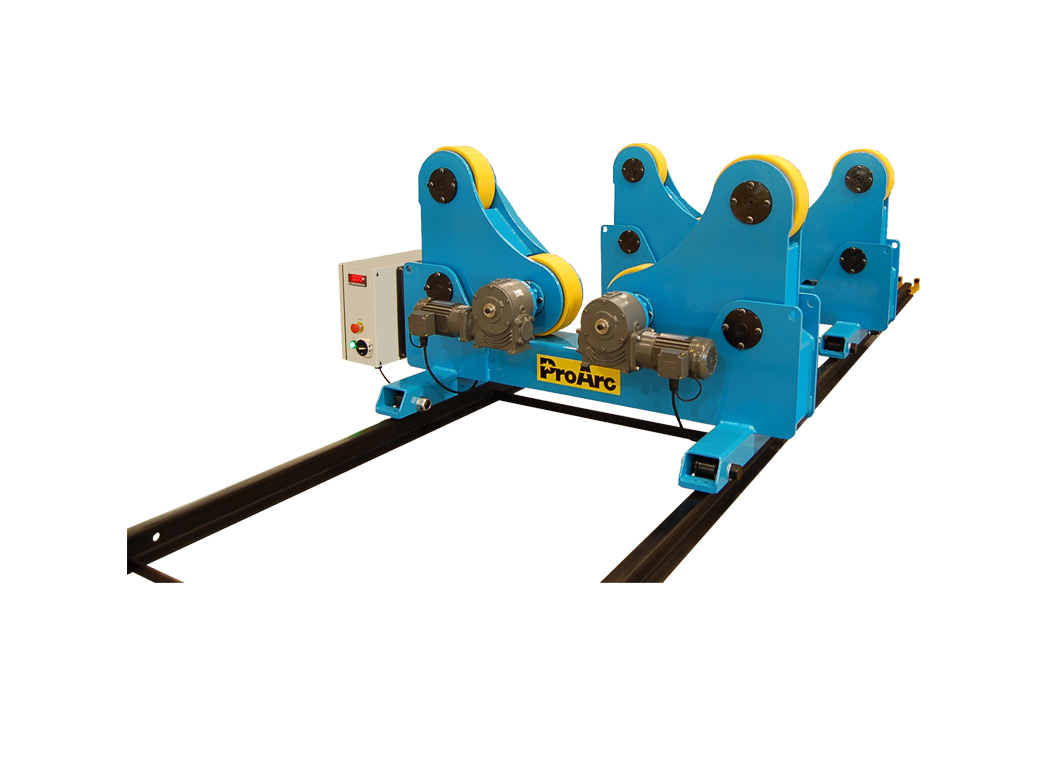

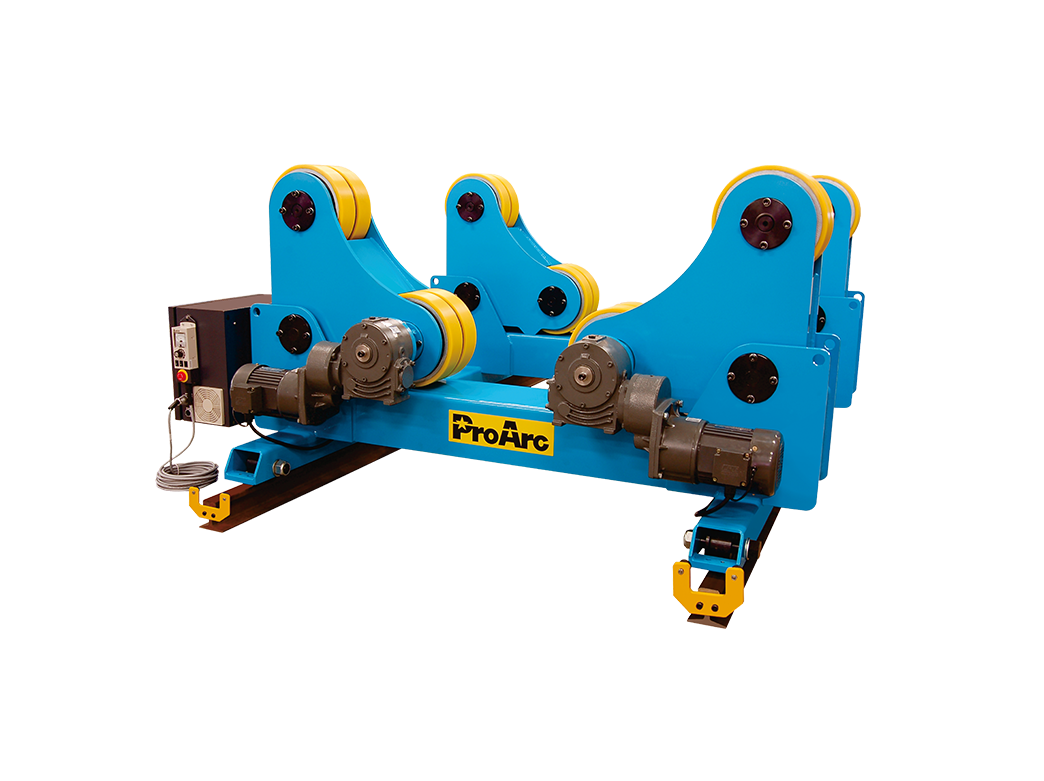

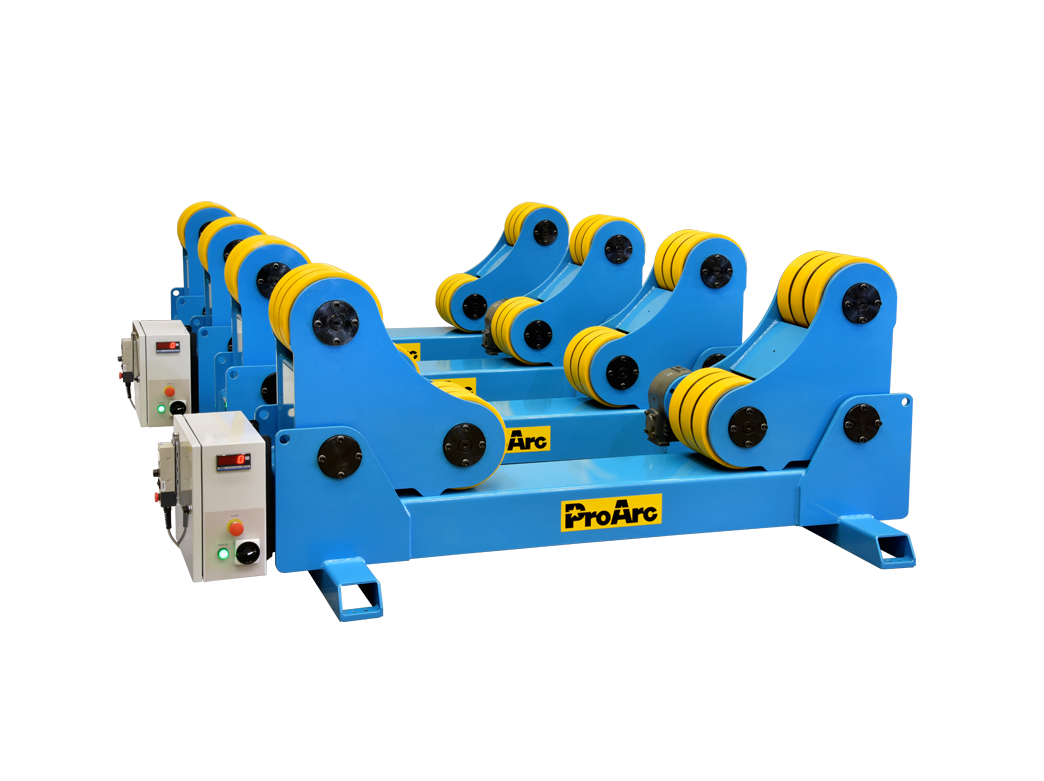

Turning Rolls Self-Aligning – TRA

ProArc self-aligning turning rolls adjust roller center line setting automatically when loading workpiece. Suitable for diameter: from Ø300mm ~ Ø6,000mm. Weight capacity: from 12 tons ~ 60 tons.

Download brochure
Model Unit TR-12KA TR-24KA TR-40KA TR-60KA
Power input AC 220/380V, 50/60Hz, 3 phase AC 220/380V, 50/60Hz, 3 phase AC 220/380V, 50/60Hz, 3 phase AC 220/380V, 50/60Hz, 3 phase
Drive motor hp 1/2 + 1/2 1/2 + 1/2 1 + 1 2 + 2
Turning capacity kgs 12,000 24,000 40,000 60,000
Diameter range (D) mm Ø 300 ~ 4,000 Ø 600 ~ 5,000 Ø 1,000 ~ 6,000 Ø 1,000 ~ 6,000
Speed range mm/min 100 ~ 1,500 100 ~ 1,500 100 ~ 1,500 100 ~ 1,500
Wheel diameter (E) mm Ø 300 Ø 300 Ø 300 Ø 300
Wheel width (F) mm 100 170 275 350
Wheel type mm PU PU / metal PU / metal PU / metal
Overall length (A) (drive/idler) mm 1,930 / 1,630 2,160 / 1,860 2,460 / 2,160 2,460 / 2,160
Overall width (B) mm 865 935 1,040 1,115
Overall height (C) mm 972 972 972 972

Specifications subject to change without notice.

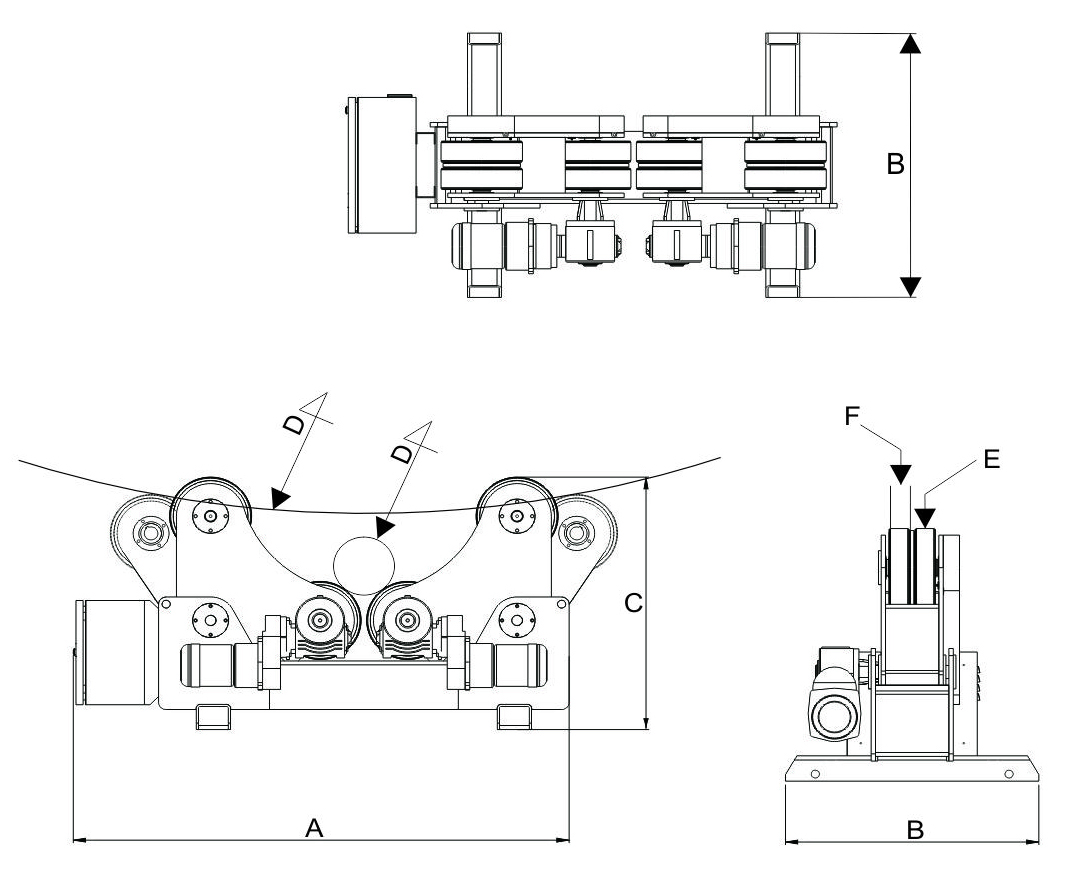

Dimensions

˄
