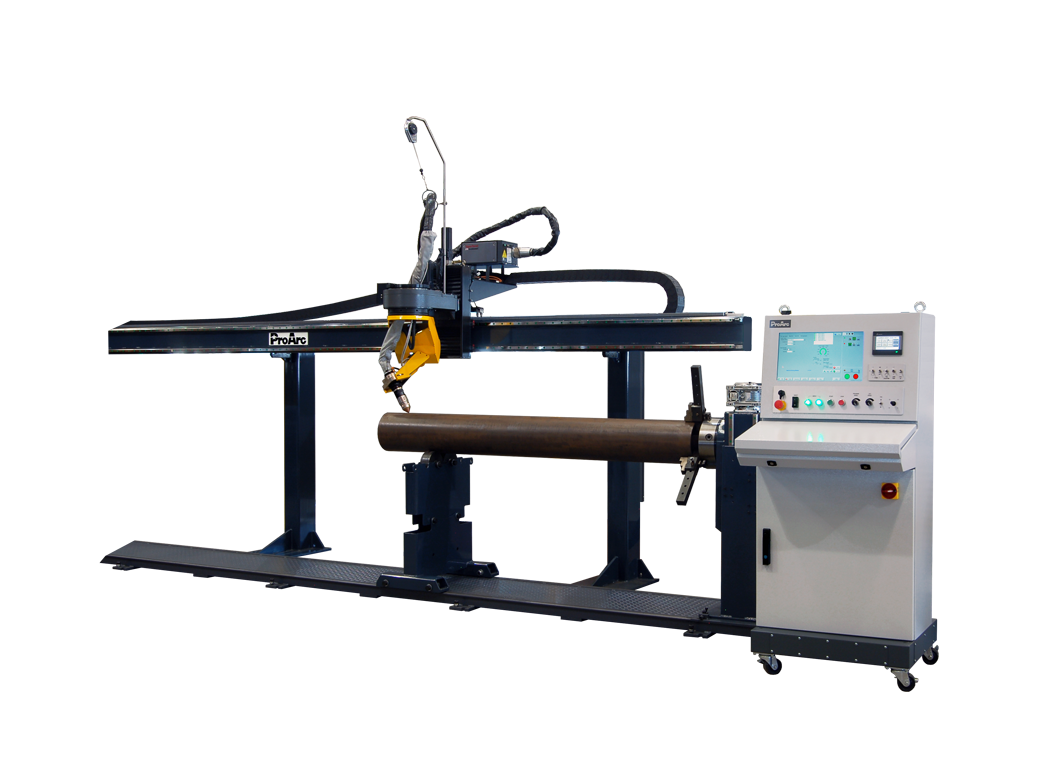

CNC Plasma Pipe Cutting Machine - Ocut

ProArc Ocut pipe cutting system comes with the latest technologies.The Ocut series provides unmatched performance, reliability, and flexibility in thermal cutting production environment. Ocut can be customized to fit your production requirements and increase overall productivity.Popular options include manual bevel rotation device, marking pen, and X-cut plasma bevel head.

Need advice Download brochure

CNC Plasma Pipe Cutting Machine - Ocut

FEATURES

  1. Rotator with self centering pipe fixture.
  2. Height adjustable rotator. Save/Load each job's rotator height.
  3. High torque drive system.
  4. Dustproof high precision linear guide ways.
  5. Self-aligned plasma torch collision holder.

SPECIFICATION

Model Unit Ocut 3 Ocut 6 Ocut 9
Power input ~ AC 220V 50/60 Hz, 3 Phase AC 220V 50/60 Hz, 3 Phase AC 220V 50/60 Hz, 3 Phase
Positioning Accuracy mm +/-0.1 +/-0.1 +/-0.1
Traveling speed m/min 16 16 16
Cutting speed m/min 12 12 12
Overall length (A) mm 7,350 / 13,350 7,350 / 13,350 7,350 / 13,350
Overall width (B) mm 1,150 1,150 1,150
Overall height (C) mm 1,850 1,850 2,000
Work diameter※1 (D) mm 50~300 250~600 550~900
Work length (E) mm 6,000 / 12,000 6,000 / 12,000 6,000 / 12,000
Headstock Travel Range (F) mm 500 500 500
Headstock Traveling Speed m/min 0.16 0.16 0.16
Headstock Rotation Speed rpm 0.5 ~ 40 0.5 ~ 40 0.5 ~ 40

※ Specifications subject to change without notice

※1 Non-standard size by request

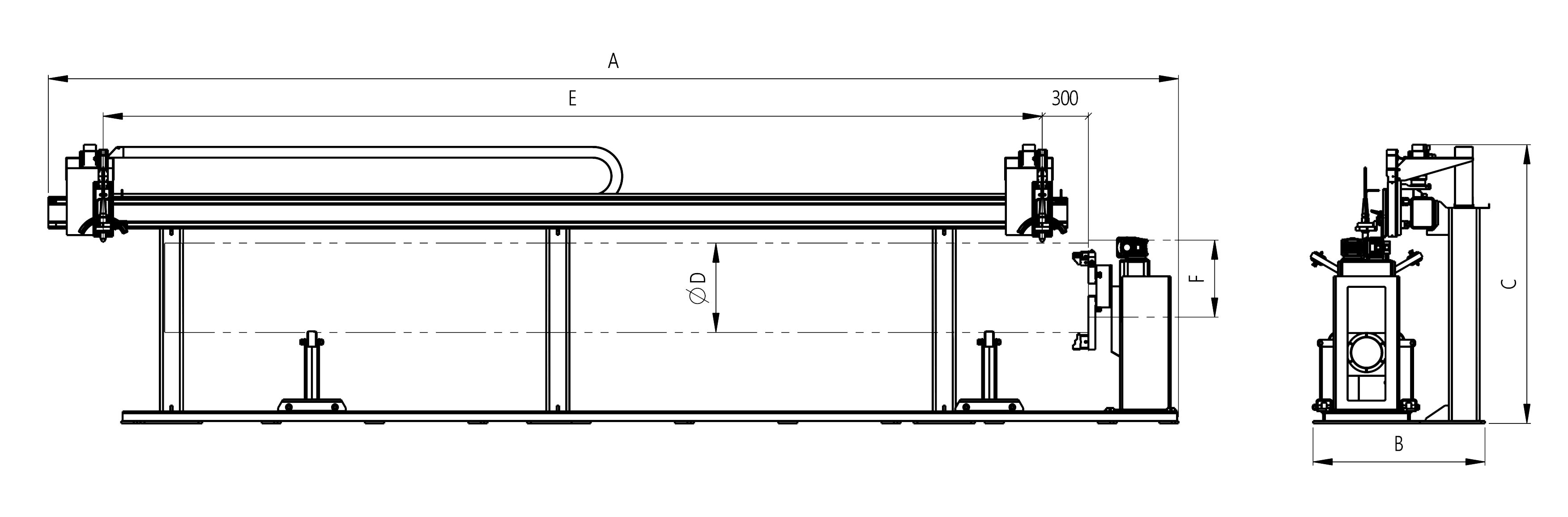

Dimensions

OPTION

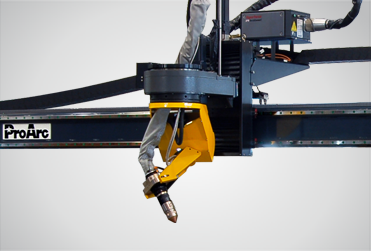

X-cut plasma bevel head

Bevel cutting capability ± 45。

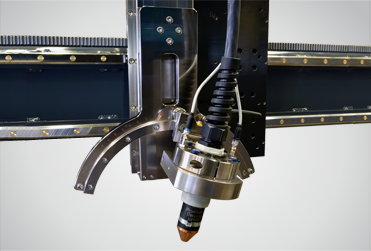

Manual bevel rotation device

Adjustment Range ± 45。

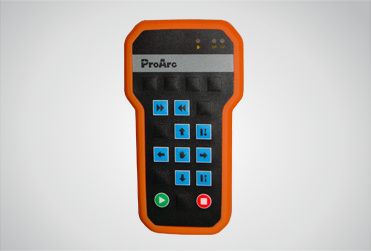

Remote controller

Start / Stop & motion control

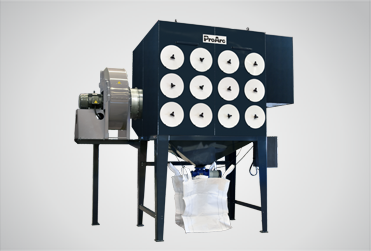

ProArc Dust collector

˄
