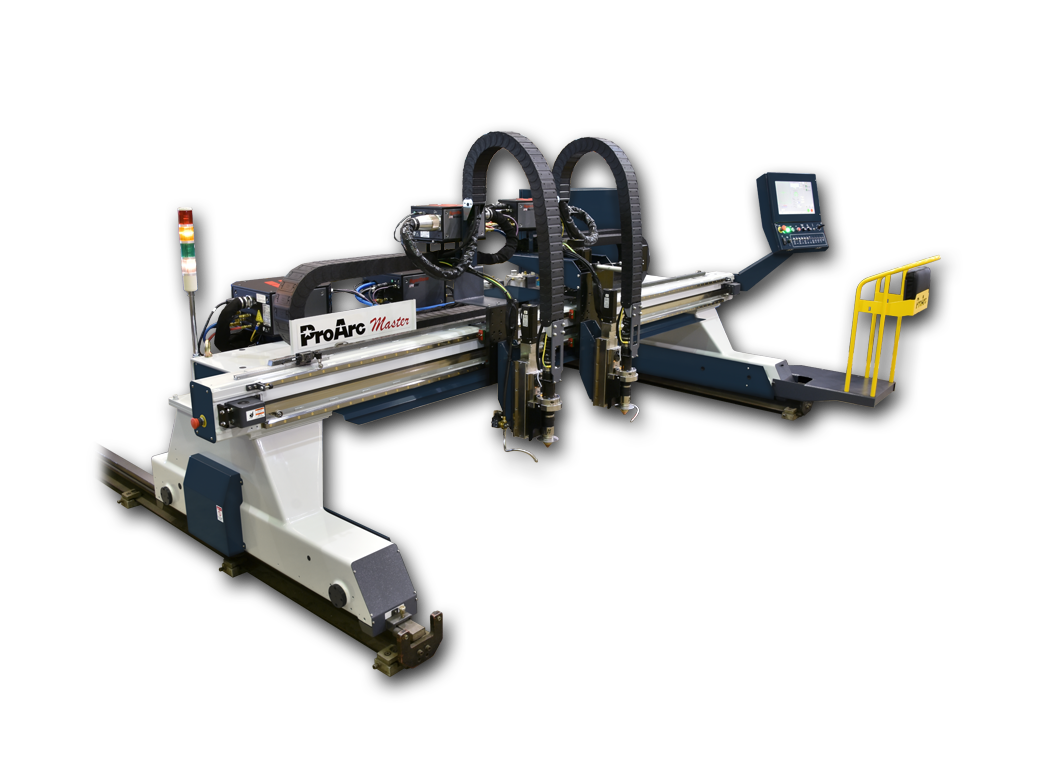

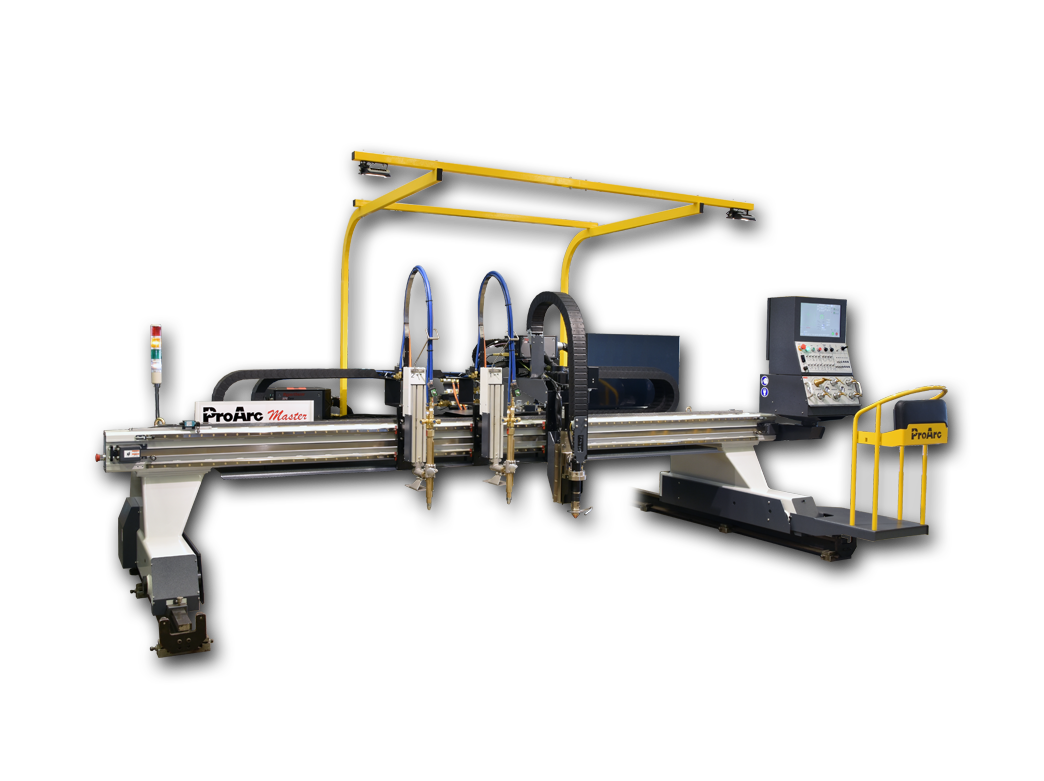

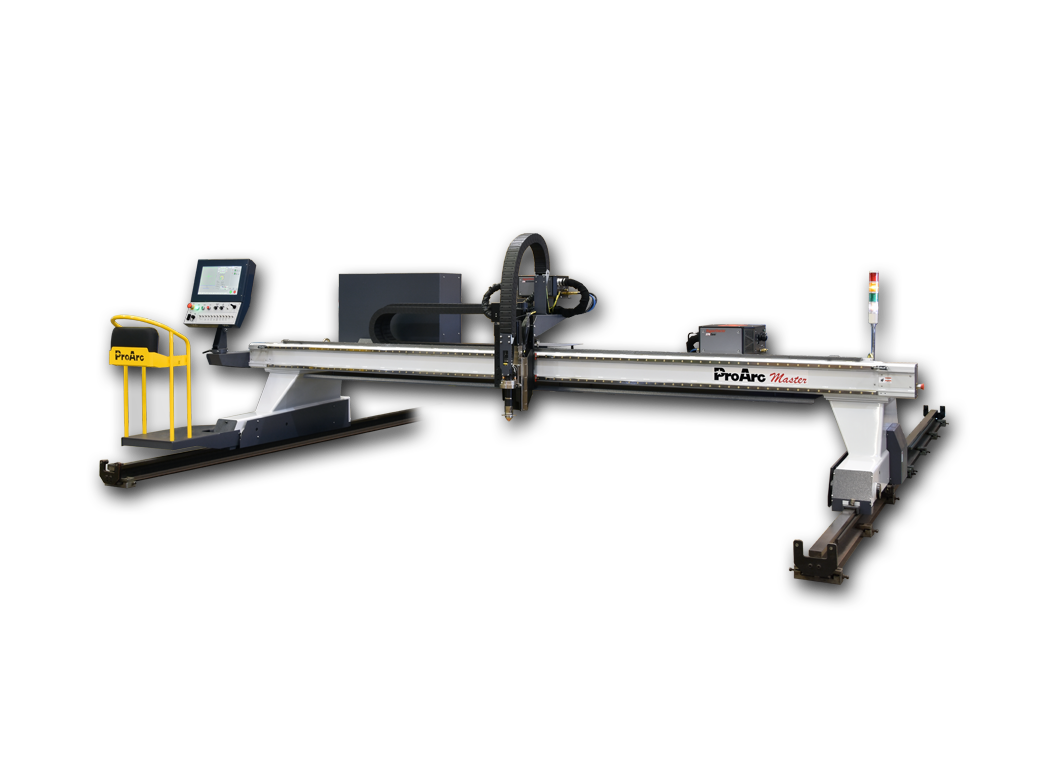

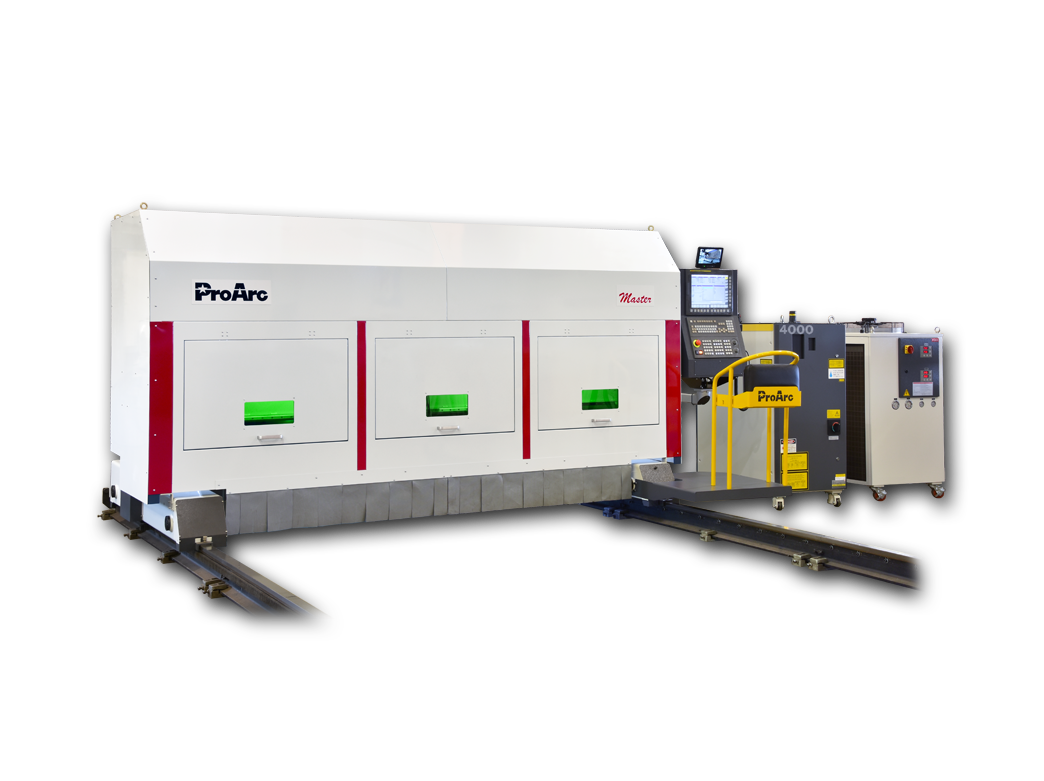

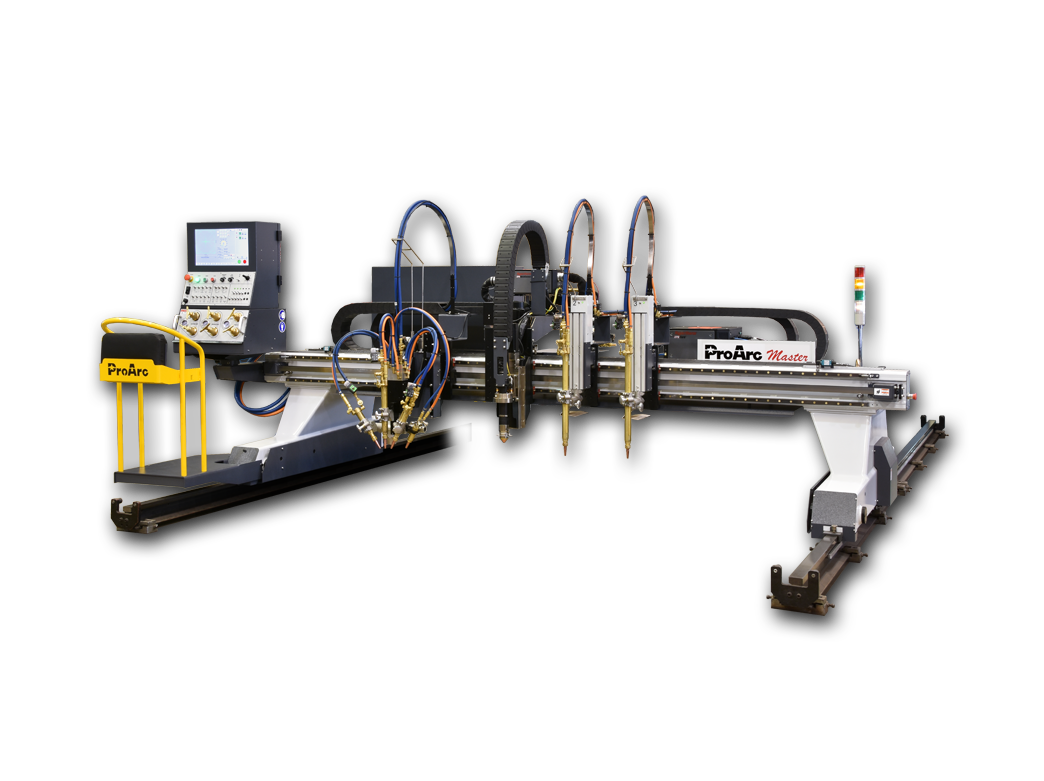

Master high-precision CNC cutting machine

ProArc Master has always been the ultimate in form and function: All-in-one CNC cutting system that puts everything - machine motions, display, processor, cutting performance, and more - inside one simple, stylish enclosure. The all-new ProArc Master includes the most advanced, most brilliant CNC cutting system we’ve ever delivered, and it’s filled with all-new technologies that take power and performance to a whole new level.

Need advice Download brochure

Master high-precision CNC cutting machine

Features

  1. Precision height control
  2. One-stop service offering track foundation, cutting table, and dust collector
  3. Safe and reliable gas distribution system
  4. Highly durable, built to last
  5. ESG compliance
  6. CE Conformity

Specification

Model Unit Master 30 Master 35 Master 40 Master 45 Master 50 Master 60
Power input 3Ø 220VAC 50/60Hz 3Ø 220VAC 50/60Hz 3Ø 220VAC 50/60Hz 3Ø 220VAC 50/60Hz 3Ø 220VAC 50/60Hz 3Ø 220VAC 50/60Hz
Travel drive method Rack & Pinion Rack & Pinion Rack & Pinion Rack & Pinion Rack & Pinion Rack & Pinion
Longitudinal rail Grinding l-rail Grinding l-rail Grinding l-rail Grinding l-rail Grinding l-rail Grinding l-rail
Transverse rail Double linear way Double linear way Double linear way Double linear way Double linear way Double linear way
Overall width (A) mm 3,885 4,385 4,885 5,385 5,885 6,885
Overall height (B) mm 1,950 1,950 1,950 1,950 1,950 2,000
Overall depth (C) mm 1,500 1,500 1,500 1,500 1,500 2,000
Cutting width (D) mm 2,600 3,100 3,600 4,100 4,600 5,600
Rail gauge (E) mm 3,000 3,500 4,000 4,500 5,000 6,000
Parking space mm 1,500 1,500 1,500 1,500 1,500 2,000
Cutting speed m/min 16 16 16 16 16 16
Rapid speed m/min 24 24 24 24 24 24
Min. distance mm between 2 torches mm 100 100 100 100 100 100
Weight kg 1,200 1,280 1,360 1,440 1,520 2,080

※ Special requirements available upon request.

※ Specifications subject to change without notice.

Dimensions

Option

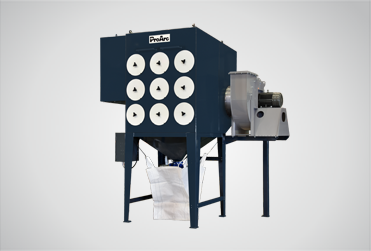

Dust collector

• High efficiency cartridge filters with nanofiber technology • Suitable for indoor use • High durability, low maintenance

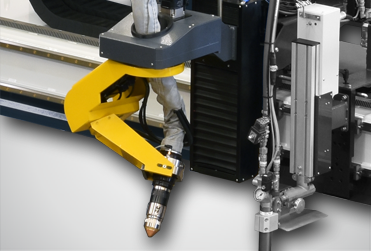

X-cut bevel cutting head

Performing AC-axes, tilt-and-rotate movements around the torch center point (TCP), thus significantly expand the effective cutting range.

Pipe cutting device

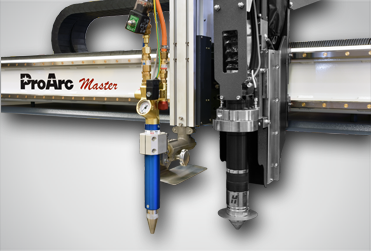

IHT automatic oxy-fuel cutting system

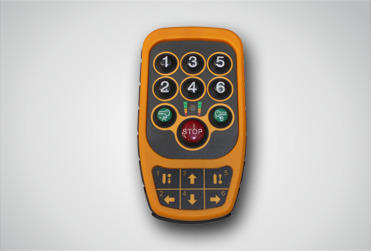

Remote control

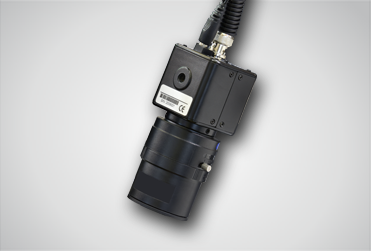

Plug-and-Play CCD camera

Marking torch

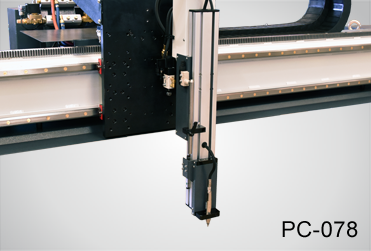

PC-004 Zin-powder marking torch PC-078 Air scriber PC-087 Pen marker

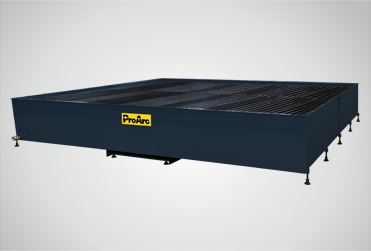

PC-141 Water table

• Anti-spatter device

• Safety photoelectric sensor unit

• LED projection lamp

˄
